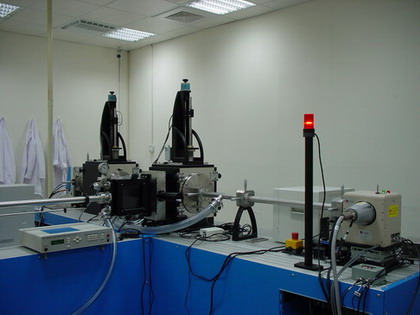

小角度X光散射儀 (Small Angle X-Ray Scattering System, SAXS)

SAXS Workshop held on 2005/4/6

Instrument Summary

SAXS Specifications

Unique Features of the SAXS
Service Items
Specimen Limitation
Contact Persons
Application Procedures

Instrument Summary

• Date of Purchase (購置年月日):2004/5/23
• Price (價格):USD $ 503,405 dollars
• Funding (經費來源): NT 9,600,000 dollars from NSTC, and NT 7,400,000 dollars from NTUST
• Date of Installation(安裝日期) :2005/1/17-2005/1/25
• Location(放置地點): T2-102
• Brand and Model(廠牌與型號): Osmic, USA; PSAXS-USH-WAXS-002
• Feature for X-ray source(X光源特點): 30 Watts low power x-ray source/optic combination that provides Cu K alpha radiation with comparable intensity to a focused beam from a rotating anode generator; X-ray source operating at 45 KV, and 0.67 mA. (Model for X-ray source: MicroMax 002, Osmic Inc., USA)
• Beam spot size(光束大小): 30 micrometer x 30 micrometer

SAXS Specifications

Back to Top Page

Unique Features of the Osmic SAXS System(美國Osmic公司「高解析度小角度X光散射儀系統」之獨家特點)

1) Source(光源)

a. Microsource with confocal beam conditioning optic(具點收束型集光鏡之微X光源)

i. Provides monochromatic beam with intensity greater than focused radiation from existing rotating anodes with the exception of the Rigaku 007.(提供單一波長之光束，其光束強度高於，除了Rigaku007以外，現有之旋轉陽極靶所產生之聚焦輻射。)

ii. Operates at only 35 Watts and uses 110V VAC; no special power requirements needed(在35瓦的低功率下操作，並使用110伏特的交流電壓；不需特殊的功率。)

iii. Maintenance comparable to a conventional sealed tube source. (維修與傳統的密封管式的X光光源一樣簡單)

2) Camera(相機):

a. 3 pinhole geometry with user-exchangeable pinholes(具使用者可更換針孔之三針孔幾何系統)

i. Pinholes can be exchanged for variable flux/resolution without dismantling the entire system. (針孔可更換，以調整光束通率及解析度，不需拆除整個系統。)

ii. Pinholes can be moved out of the way to expose a large through-hole for sequential pinhole alignment. (針孔可移開自原有光徑，以便暴露一個大的貫通孔洞，以利連續之針孔對齊調整)

b. Open Platform design. (開放式平台設計)

i. The only system to offer additional scattering chambers (for different k-space ranges), simultaneous wide angle scattering using image plates, and a surface scattering/reflectivity stage, to name just a few unique options. (本系統獨一無二，提供了額外的散射室(以適用於不同的散射向量空間之範圍)，可同時以影像板測量廣角度散射，及提供測量表面散射/反射度的工作台，以上僅略舉數例。)

c. Large sample chamber with the optional ability to cover the incident and scattered beam paths with windows for samples in ambient or other non-vacuum environment.( 大型的樣品室，具含蓋入射及散射光束路徑的選擇能力，並開有視窗，以利常壓或非真空環境下的樣品測量。)

d. The sample changer drive mechanism is mounted outside the sample chamber to maximize the available space inside the chamber.( 樣品更換器驅動機制是安裝於樣品室之外，以使樣品室內的可用空間最大化。)

e. An x-ray photodiode is provided inside the sample chamber to be used for performance diagnostics and also fine tuning the alignment of the monochromator optic and the pinhole positions. (提供一個X射線光電二極管於樣品室內，用以診斷操作性能，及微調單光器光學系統是否對齊及針孔位置。)

f. Video display of the beam position on the sample simplifies the alignment of small samples. (影像顯示在樣品上的光束位置，簡化了小樣品的對齊調整。)

g. The beamstop is embedded with an x-ray sensitive photodiode for in-situ transmission measurement. (光束停止點嵌入了一個對X射線敏感之光電二極體，以提供即時穿透式的測量功能。)

3) Detector(偵測器) :

a. 2D Multiwire, gas-filled proportional type with(二維、多接線、充氣比例類型具有):

i. 120mm active diameter(120毫米之有效直徑。)

ii. Sub-microsecond time stamping for performing time resolved or periodic pump/probe experiments without waiting for data storage. (次微秒時間印記功能，以執行時間分離或週期性之泵送／探測實驗，不需等待資料儲存。)

Back to Top Page

Service Items

Back to Top Page

Specimen Limitation

• 室溫測量條件下，固體樣品試片或薄膜尺寸 (size suggested for solid specimen or film under room temperature)：3 to 5 cm (length), 0.5 to 1 cm (width), and less than 1 to 2 mm (thickness). (The sample will be fixed on a sample rack with 42 holes (about 1 cm in diameter) on it using a 3M Scotch tape.)
• 變溫測量條件下(20-300C)，固體樣品試片或薄膜尺寸 (size suggested for solid specimen or film under varied temperature (20-300 C))：0.5 cm (length), 0.5 cm (width), and less than 1 to 2 mm (thickness). (The sample will be placed on a temperature-controlled liquid sample cell with sample size limitation mentioned above.)
• 固體粉末數量 (amount of powder): at least 0.5 to 1 cubic cm of the powder should be provided. (The sample will be put into a special quartz capillary (1 or 2 mm in OD, 0.1 mm in wall thickness, and 80 mm in length, which is imported from USA), and its one end will be sealed with a tape.)
• 固態樣品需無毒、無(或極低)揮發性、且無輻射性 (The sample should be free from poison, volatility, and radiation.)
• 室溫測量條件下(20C)，低黏度液體樣品溶液： at least 0.5 to 1 cubic cm of the low-viscosity liquid sample should be provided. (The sample will be put into a special quartz capillary (1 or 2 mm in OD, 0.1 mm in wall thickness, and 80 mm in length, which is imported from USA), and its one end will be sealed with epoxy.) Please be noted that the user should also provide at least 0.5 to 1 cubic cm of pure solvent sample for the X-ray scattering experiment in order to facilitate the background subtraction from the sample solution.
• 樣品若需沈積在基板上，基板的材質及厚度，不可讓X-ray對基板的吸收度高於90%以上，否則樣品將無法在穿透模式下測量。建議使用0.1mm厚度以下的矽晶片或石英玻璃片為佳。(If the sample has to be deposited on a substrate, the material and thickness of the substrate should not cause the degree of absorption of the incident X-ray greater than 90%. Otherwise, the sample will probably not be able to be measured its scattered intensity under the transmission mode of the test. It is suggested to use silicon wafer or quartz glass plate with a thickness less than 0.1 mm.)

Back to Top Page

Contact Persons

• 儀器管理老師 (Faculty in charge of the SAXS system)：Professor Yan-Jyi Huang (黃延吉老師)；Phone: (Office) (02)2737-6625, (SAXS Lab) (02)2730-1120, (02)2730-1121, or (02)2730-1122; Fax: (02)2737-6644; E-mail: huangyj7@ms12.hinet.net or huangyj@mail.ntust.edu.tw
• 儀器技術員(Technician)：張美杏小姐(協助儀器操作與維護)；Phone: (02)2730-1028; Fax: (02)2737-6644; E-mail: maigge@mail.ntust.edu.tw
• 儀器技術員(Technician)：柯建安先生(協助儀器室之電力系統、溫濕度、空氣清淨、及監視錄影系統之管理與維護)；Phone: (02)2730-1209; Fax: (02)2737-6644; E-mail: B10401@mail.ntust.edu.tw

Back to Top Page

Application Procedures

• 貴儀使用者 (Those who have NSTC account for using precious instruments of the NSTC-sponsored labs)：依國科會貴儀申請辦法，上國科會貴儀網站 預約取得預約時段後，再填寫本儀器申請單(具科技部貴儀帳號) (pdf檔) 或 (doc檔) ，於測試日之7天前以e-mail寄達本中心技術員張美杏小姐之信箱 maigge@ch.ntust.edu.tw 。本中心於測試日3天前，回傳確認使用時間通知單。測試日當日，申請人應親自前來。當日由負責技術員或經黃延吉老師培訓的研究生代為分析，申請人必須在場學習及備詢。(Please submit your application via the normal procedures required by NSC. Once the reservation is made, you should also submit the application form (pdf file) or (doc file) to the SAXS lab at NTUST by e-mail at least 7 days before the scheduled date for the sample test. We will send you the confirmation schedule of the sample test 3 days ahead of the test date. On the date of the sample test, the applicant must come to the SAXS lab in person. Authorized technician or graduate students of Professor Yan-Jyi Huang for using the SAXS system will run the experiments for you. You should be joining the experiments all the time when your experiments are conducted in order to learn something from the experiment and answer questions regarding the sample feature, test conditions, or results to be expected.)
• 非貴儀使用者 (Those who willing to pay cash to use the SAXS system)：申請人於預訂使用本儀器之7至45天前，，將本儀器申請表(現金付費使用者) (pdf檔) 或 (doc檔) ，於測試日之7至45天前以e-mail寄達本中心技術員張美杏小姐之信箱 maigge@mail.ntust.edu.tw 。本中心於測試日3至7天前，回傳確認使用時間通知單。測試日當日，請先至本校總務處出納組繳費，申請人並應親自前來本SAXS實驗室。當日由負責技術員或經黃延吉老師培訓的研究生代為分析，申請人必須在場學習及備詢。 (Applicants should submit the application form (pdf file) or (doc file) to the SAXS lab at NTUST by e-mail at least 7 to 45 days before the scheduled date for the sample test. We will send you the confirmation schedule of the sample test 3 to 7 days ahead of the test date. On the date of the sample test, the service fee should be paid in advance at the Cashier Department under the General Affairs of the NTUST. Also, the applicant must come to the SAXS lab in person. Authorized technician or graduate students of Professor Yan-Jyi Huang for using the SAXS system will run the experiments for you. You should be joining the experiments all the time when your experiments are conducted in order to learn something from the experiment and answer questions regarding the sample feature, test conditions, or results to be expected.)

Service Time

1: 校內貴儀使用者預約 (reserved for faculty members or graduate student at NTUST having NSTC account entitled to use precious instruments of the NSTC-sponsored labs)

2: 校外貴儀使用者預約 (reserved for faculty members or graduate student from other university or research organization having NSTC account entitled to use precious instruments of the NSTC-sponsored labs)

3:願意繳交現金之使用者預約 (reserved for applicants willing to pay cash to use the SAXS system)

3:每月第二及第四個週一，儀器停機一天，更換針孔系統及光束停止點。遇假日則順延至次一個上班日。 (For the second and fourth Monday of each month, the SAXS system will be down for changing the pinhole and beamstop. Should it be a holiday for that Monday, the down time for the SAXS system will be delayed to the nearest working day.)

Back to Top Page

Down Time for the Years 2023, 2024, 2025, and 2026

1. The down time for the SAXS system is for the change of the pinhole systems. On the second Monday of the month, the pinhole will be switched to the high-resolution one, whereas on the fourth Monday of the month, it will be switched to the high-flux one. 2. 自112/1/1起，除非使用人特別預約high-resolution模式(依據上表的排程)，pinhole均維持high-flux模式。

Back to Top Page

Service Charge

1: 109/1/1 起，本校SAXS 不再申請參加國科會貴儀服務，但仍列為台科大 的校內貴儀，有網址連結(http://libraryfile.lib.ntust.edu.tw/yjhuang/ saxs.htm)，提供校內外的服務(每4 小時收費新台幣800 元現金)。使用本實驗室準備自美國進口之石英毛細管者，每枝毛細管額外收取新台幣400元現金(四佰元)材料費。(註： SAXS 於2018 年7 月份更換X 光光管及高壓電源供應器(合計美金66,465 元,約新台幣200 萬元)，目前運作正常。)

2:自民國108年1月1日起，計畫付費的使用者，每服務單元(4小時)之收費標準調降為新台幣16000元(Starting from January 1, 2019, for users with NSTC project, the charge rate will be NT 16000 dollars per service unit (1 service unit = 4 hours)；自2005/6/6起，使用本實驗室準備自美國進口之石英毛細管者，每枝毛細管額外收取新台幣4000元(四仟元)材料費。茲建議申請人自行向美國Charles Supper公司購買管壁厚度為0.01mm，直徑為1mm或2mm之專用毛細管。(Starting from June 6, 2005, for those who are going to use quartz capillary which is imported from USA and prepared by our lab, another NT 4000 dollars for each of quartz capillary tube used for the sample test will be charged. It is suggested that the applicant should buy their own capillaries，with a wall thickness of 0.01mm, and a diameter of 1 or 2 mm，from Charles Supper Company，USA.)

3:現金付費的使用者，每服務單元(4小時)之收費標準為新台幣6000元；使用本實驗室準備自美國進口之石英毛細管者，每枝毛細管額外收取新台幣400元(四佰元)材料費。(均限現金，請至本校總務處出納組繳納)(For users paying cash, the charge rate is NT 6000 dollars (in cash) per service unit (1 service unit = 4 hours). For those who are going to use quartz capillary which is imported from USA and prepared by our lab, another NT 400 dollars for each of quartz capillary tube used for the sample test will be charged. The applicant should pay cash at the Cashier Division under the General Affairs of the NTUST.)

*使用本實驗室準備自美國進口之石英毛細管者，每枝毛細管額外收取新台幣400元材料費(限現金，請至本校總務處出納組繳納)。(For those who are going to use quartz capillary which is imported from USA and prepared by our lab, another NT 400 dollars for each of quartz capillary tube used for the sample test will be charged. The applicant should pay cash at the Cashier Division under the General Affairs of the NTUST.)

**一個服務單元為4小時；未滿4小時，一律以4 小時計。 (Each service unit is 4 hours. For the service time less than 4 hours, it will still be counted as one unit.)

***實驗結果及圖形，在您的服務單元結束後，立即取回。請自備隨身碟儲存檔案資料。(The experimental results and plots will be obtained as soon as one』s service unit is over. Please bring your own removable hard disk with you for data storage.)
